ID Fan Working Principle: Working, Applications and Benefits
Introduction:
Induced Draft (ID) fan is an important piece of equipment used in boilers, thermal power plants, cement plants, and other industrial applications. Its main function is to remove flue gases from the boiler or furnace and maintain the required negative pressure inside the system. Proper flue gas removal supports efficient combustion and helps the boiler operate smoothly.
AKJ Industries provides industrial air and gas handling solutions designed to meet different industrial operating requirements. A well-designed ID fan helps maintain consistent airflow, supports effective exhaust gas movement, and contributes to reliable boiler performance.
Understanding the ID fan working principle helps industries select the right equipment for their boiler systems and industrial processes.
What Is an ID Fan?
An ID fan, also known as an Induced Draft Fan, is an industrial fan installed in the exhaust gas path of a boiler system. It draws flue gases from the furnace and directs them towards the chimney through the required gas-cleaning equipment.
ID fan pulls combustion gases out of the boiler. ID Fan FD Fan working difference makes the ID fan an essential component of many industrial boilers and power generation systems.
A boiler ID fan is generally designed to handle hot flue gases and the pressure losses created by ducts, dust collectors, air pollution control equipment, and other connected components.
ID Fan Working Principle
The ID fan working principle is based on creating suction to draw flue gases through a boiler system. The fan operates by converting mechanical energy from its motor into airflow and pressure energy.
The working process generally follows these steps:
- Flue Gas Generation: Fuel burns inside the boiler furnace, producing hot combustion gases.
- Gas Extraction: The ID fan creates a pressure difference that draws flue gases out of the furnace and boiler gas passages.
- Gas Movement: The gases pass through connected ducts and, where installed, equipment such as an economizer, air preheater, dust collector, or scrubber.
- Exhaust Discharge: The fan moves the flue gases towards the chimney or exhaust stack.
- Pressure Control: The fan maintains the required furnace draft, helping prevent flue gases from escaping into the boiler room.
The exact arrangement depends on the boiler design and the location of the ID fan within the flue gas path.
Boiler ID Fan Working
The boiler ID fan working process is closely connected to the boiler’s combustion and draft control system. During boiler operation, fuel combustion generates gases that must be removed continuously to maintain suitable operating conditions.
The ID fan creates negative pressure in the furnace by extracting flue gases from the boiler. This helps fresh combustion air enter the furnace through the air supply system. The balance between the ID fan and FD fan is important for maintaining stable combustion and the required furnace pressure.
In many industrial installations, the ID fan speed is adjusted using a variable frequency drive (VFD) or another control arrangement. This allows the airflow to respond to changing boiler loads and operating conditions.
Proper selection and maintenance of the boiler ID fan can help reduce unnecessary energy consumption, improve draft stability, and support reliable boiler operation.
Other Products:
What Is an ID Blower Fan?
An ID blower fan is another commonly used term for an induced draft fan or induced draft blower. Both terms generally describe equipment that draws exhaust gases from an industrial process and moves them through an exhaust system.
Depending on the application, ID fans may use centrifugal fan construction with backward-curved, forward-curved, or radial blades. The suitable design depends on factors such as gas temperature, required airflow, static pressure, dust loading, and the nature of the exhaust gases.
The ID blower fan should be selected based on the system’s operating requirements. Its size is crucial; choosing the wrong size can lead to reduced draft, higher power consumption, vibration, or difficulties in maintaining the necessary pressure within the furnace.
ID Fan in Power Plant
An ID fan in power plant applications plays a significant role in the boiler flue gas handling system. During electricity generation, the boiler burns fuel to produce steam, which drives a turbine connected to an electrical generator.
The combustion process produces flue gases that must be extracted and discharged safely. The ID fan pulls these gases through the boiler’s heat recovery sections and pollution-control equipment before directing them towards the chimney.
The main functions of an ID fan in a power plant include:
- Maintaining the required negative pressure inside the boiler furnace.
- Removing flue gases generated during fuel combustion.
- Supporting continuous boiler operation.
- Moving exhaust gases through dust collection and emission-control equipment.
- Helping maintain stable draft conditions during changes in boiler load.
The fan’s capacity must be matched to the boiler output, flue gas volume, system resistance, and required operating conditions.
ID Fan in Thermal Power Plant
An ID fan in thermal power plant installations is a critical part of the boiler draft system. Thermal power plants use large boilers to convert water into high-pressure steam, and the combustion gases generated during this process need to be removed continuously.
The ID fan draws flue gases through the boiler gas passages and connected heat recovery equipment. Depending on the plant configuration, the gases may then pass through electrostatic precipitators (ESPs), bag filters, flue gas desulphurization systems, or other pollution-control equipment before discharge.
Thermal power plant ID fans are often designed for high airflow rates and significant static pressure requirements. They must also withstand demanding operating conditions, including elevated gas temperatures and dust exposure.
Regular monitoring of fan vibration, bearing temperature, motor current, impeller condition, and airflow helps maintain reliable performance and reduce unexpected shutdowns.

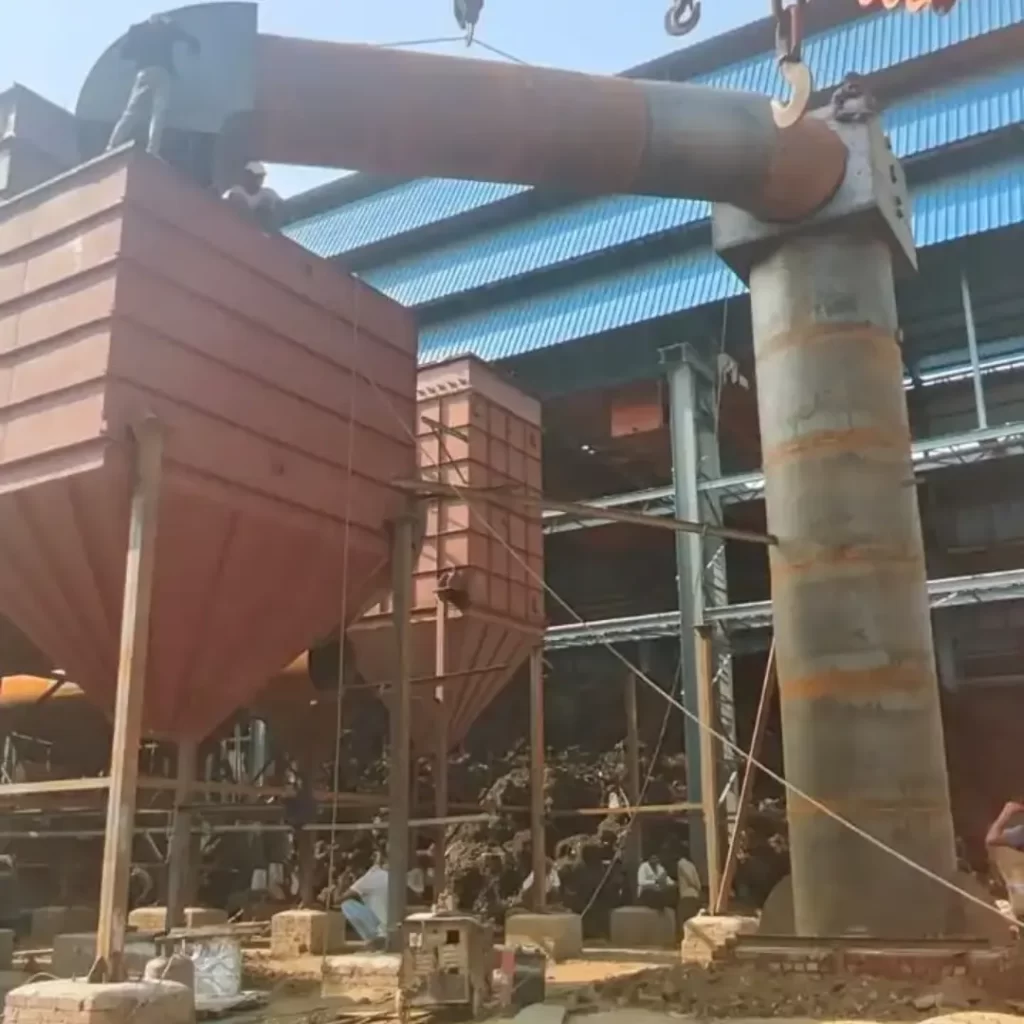

Types Of Dust Collector
Main Components of an ID Fan
An industrial ID fan typically consists of the following components:
1. Impeller: The rotating component that transfers energy to the flue gas and produces airflow.
2. Fan Casing: Houses the impeller and guides the gas towards the outlet.
3. Electric Motor: Supplies the mechanical power required to operate the fan.
4. Shaft and Bearings: Support the rotating assembly and allow smooth operation.
5. Inlet and Outlet Ducts: Carry flue gases into and out of the fan.
6. Drive System: Transfers power from the motor to the fan through a direct-drive or belt/gear arrangement, depending on the design.
7. Control System: Helps regulate fan speed, monitor operating conditions, and maintain the required draft.
The actual components vary according to the fan design, capacity, and industrial application.
Applications of ID Fans
ID fans are used in a wide range of industries where combustion gases or process exhaust gases must be extracted.
- Boiler Systems: For removing combustion gases and maintaining furnace draft.
- Thermal Power Plants: For continuous flue gas extraction from power boilers.
- Cement Plants: For handling kiln exhaust gases and other process gases.
- Steel and Metallurgical Industries: For exhaust gas movement in selected furnace and process systems.
- Chemical Industries: For extracting process exhaust gases where the fan materials are suitable.
- Industrial Furnaces: For maintaining the required draft and removing combustion products.
- Waste-to-Energy Plants: For moving flue gases through exhaust and emission-control systems.
- Fan construction and material selection should match the gas temperature, dust concentration, chemical composition, and operating environment.
Benefits of an Industrial ID Fan
A properly selected ID fan offers several operational advantages:
- Effective Flue Gas Removal: Helps extract combustion gases from the boiler and furnace.
Stable Furnace Draft: Supports the required negative pressure during operation. - Improved Process Reliability: Helps maintain continuous gas movement through the exhaust system.
- Support for Combustion Efficiency: Works with the air supply system to maintain suitable draft conditions.
- Compatibility with Gas Treatment Systems: Helps move flue gases through connected pollution-control equipment.
- Flexible Operation: Suitable control arrangements allow airflow adjustment according to system demand.
- Industrial Versatility: Available in different designs and capacities for varied boiler and process requirements.
- Actual performance depends on correct fan selection, system design, installation, and regular maintenance.
How to Select the Right ID Fan
For industrial applications, a wide range of induced draft (ID) fans is available to meet different boiler and exhaust system requirements. At AKJ Industries, selecting the right ID fan depends on factors such as airflow capacity, operating temperature, pressure requirements, gas composition, and the specific needs of each industrial process.
- Required airflow or gas volume.
- Total static pressure and system resistance.
- Flue gas temperature and density.
- Dust concentration and particle characteristics.
Gas composition and corrosion potential. - Motor power and energy requirements.
- Installation space and duct arrangement.
- Required speed control and maintenance access.
For boiler and power plant applications, the fan should be selected using actual operating data rather than airflow requirements alone. A properly sized fan can help maintain a stable draft and avoid unnecessary operating costs.
ID Fan Maintenance Tips
Regular maintenance helps improve fan reliability and reduce the risk of unplanned downtime.
- Inspect the impeller for dust buildup, erosion, and damage.
- Check bearings, lubrication, and operating temperatures.
- Monitor vibration and investigate unusual noise.
- Inspect belts, couplings, shafts, and drive components.
- Check ductwork and joints for leakage or blockage.
- Monitor motor current, fan speed, and operating pressure.
- Follow the manufacturer’s inspection and maintenance schedule.
For fans handling dusty or high-temperature gases, inspection frequency should be based on the actual operating environment and equipment recommendations.
Why Choose AKJ Industries for Industrial ID Fan Solutions?
AKJ Industries works as a well recognized manufacturing company of dust collector or industrial equipment for better environmental in the industrial equipment sector, offering solutions for different industrial process requirements. When selecting an ID fan or ID blower fan, customers should consider equipment construction, operating capacity, pressure requirements, material suitability, and long-term maintenance needs.
For boiler and thermal power plant applications, choosing a fan that matches the system’s airflow, temperature, and static pressure requirements is essential for dependable performance. The right technical evaluation helps ensure that the fan works effectively with the boiler, ductwork, and gas treatment equipment.
Contact AKJ Industries to discuss your industrial fan requirements and identify a suitable solution based on your application and operating conditions.
Frequently Asked Question: Induced (ID) Fan
ID fan works by creating suction that draws flue gases out of a boiler or furnace. It moves these gases through the exhaust system and helps maintain the required negative pressure inside the furnace.
The main function of a boiler ID fan is to extract combustion gases and maintain suitable furnace draft conditions for stable boiler operation.
An FD fan supplies fresh air to support combustion, while an ID fan extracts flue gases from the boiler. Both fans may work together to maintain the required draft and airflow balance.
Airflow, static pressure, gas temperature, dust concentration, impeller condition, fan speed, and duct resistance all affect ID fan performance.
Efficiency can be supported through correct fan sizing, suitable speed control, regular impeller cleaning, proper bearing maintenance, vibration monitoring, and reducing unnecessary system resistance.
Conclusion:
Industrial ID fan is an essential component of industrial boiler systems, helping remove flue gases and maintain the required furnace draft. Understanding the ID fan working principle, boiler ID fan working, and the role of an ID fan in a power plant helps industries make better decisions about fan selection and maintenance.
For thermal power plants, industrial boilers, and other process applications, the right ID fan design can support reliable gas handling and stable operation. AKJ Industries can be approached to discuss industrial fan requirements based on the specific application, airflow, pressure, and operating conditions.
